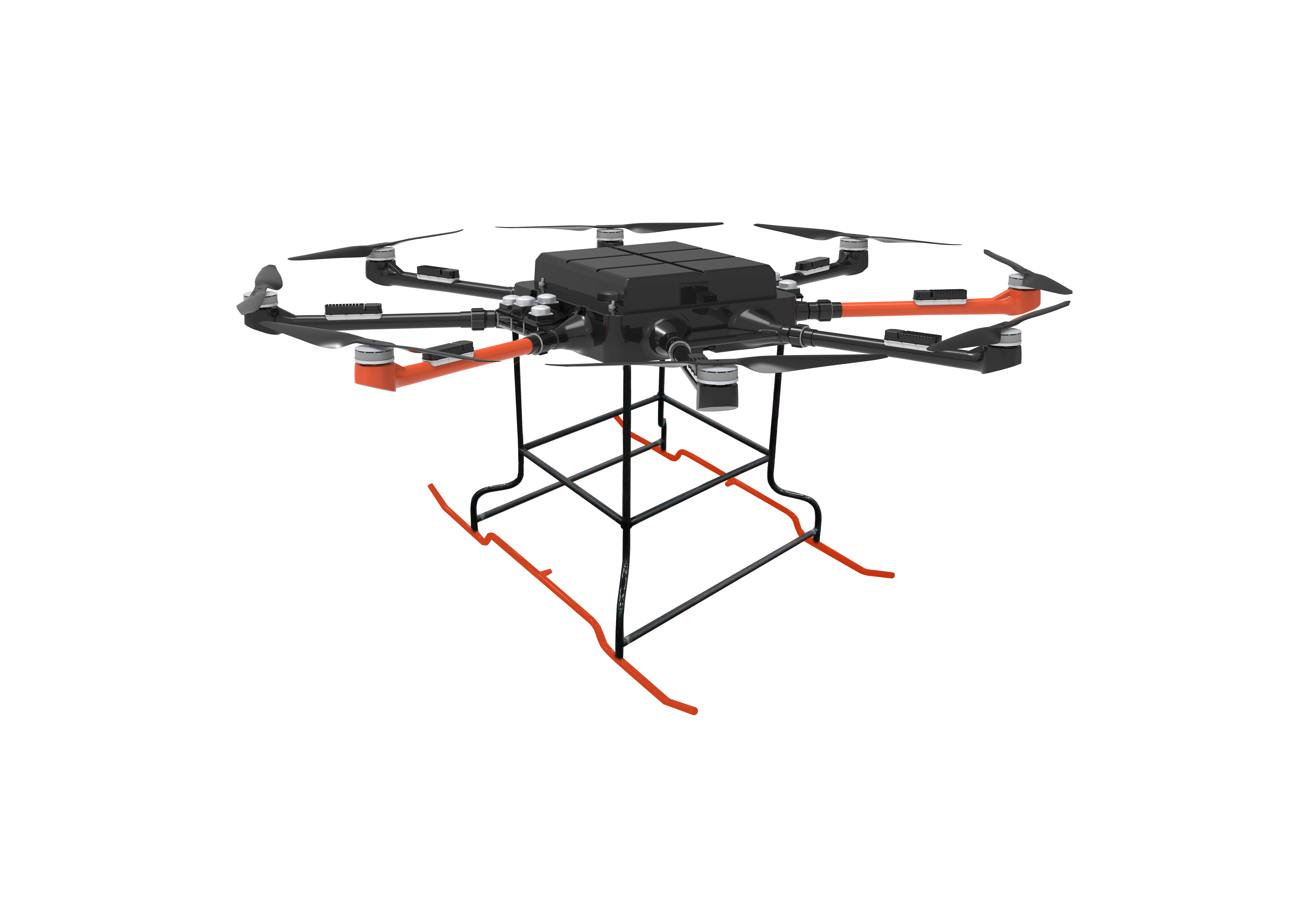

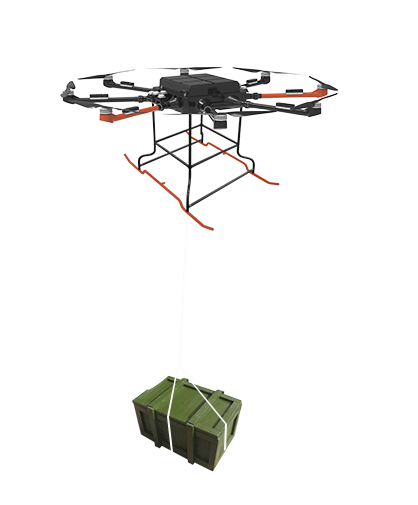

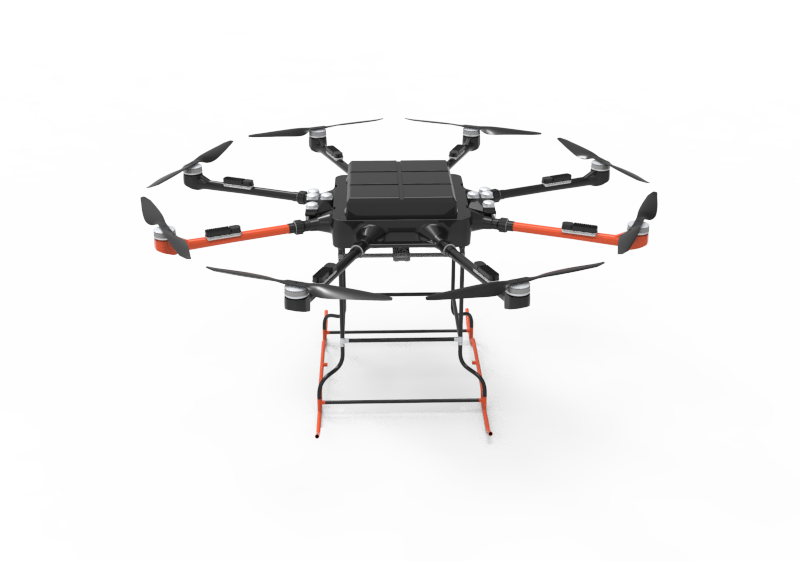

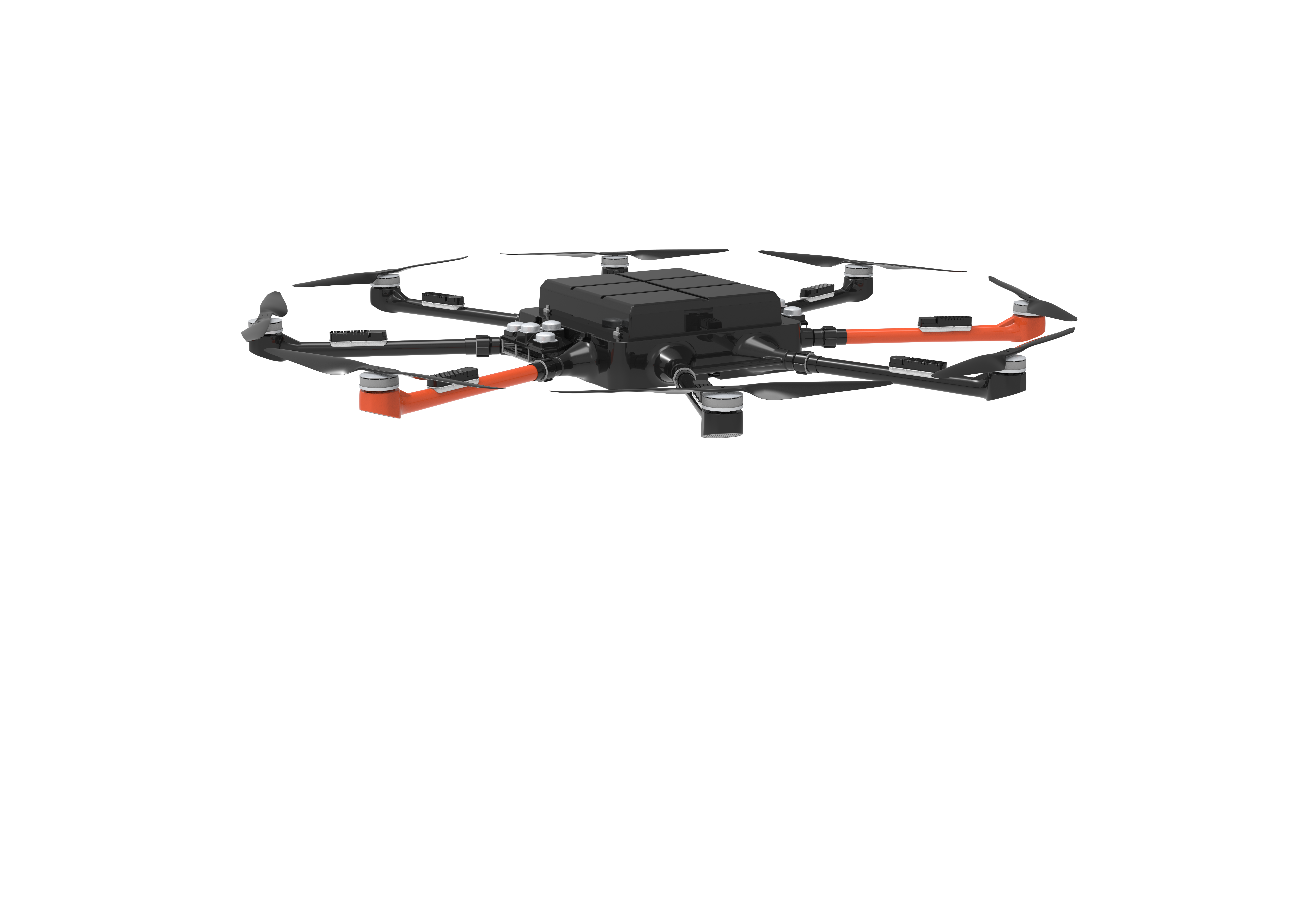

KWT-X8L-50
PRODUCT DESCRIPTION
The drone KWT-X8L-50 is an upgraded model which can carry 50Kg payloads maximum, optimizing on security features/power direction/power redundancy, suitable for working with heavy payloads.
- 2020-06-18
- 2020-06-18
- 2020-06-18
- 2019-07-23
视频播放失败，请联系站点管理员！
RELATED NEWS
JOB VIDEO
2019-09-17【新闻直播间】武警部队探索无人机高高原运输投送
MAIN FEATURES
• Heavy load up to 50kg for about half hour
• Carbon fiber
• High wind resistance: up to 13.9-17.1m/s
• 10-25km range for 50kg load transportation in maintains
• Anti-GNSS interference
• Maximum working altitude: 5000m (altitude, relative climbing 2000m)
APPLICATION
• Universal flight transport platformSAR radar
• Large communication base station mount
• Scientific research test equipment flight platform
• Forest fire extinguishing (water agent, powder agent, other fire extinguishing materials)
|
Diagonal wheelbase |
2850±20mm |
|
Max wingspan |
3950±20mm |
|
Empty weight |
32±1kg |
|
Take- off weight withno payload |
82kg±3kg |
|
Max take-off weight |
140kg |
|
Standard task payload |
50kg |
|
Flight time with 20KG |
≥50min (altitude below 500m, 25°C) |
|
Flight time with 50KG |
≥30min (altitude below 500m, 25°C) |
|
Economic speed |
15m/s（54km/h） |
|
Max climbing speed |
4m/s |
| Max decreasing speed |
2m/s |
| Max working altitude | 6000m |
| Max relative flight height | 4000m |
|
Wind resistance |
13.9-17.1m/s |
|
Working temperature |
-20℃～+45℃ |
| Obstacle avoidance | Forward dual redundancy obstacle avoidance (Binocular + laser) |
|
Parachute |
*optional: Intelligent |
| AB point operation mode |
*optional |
