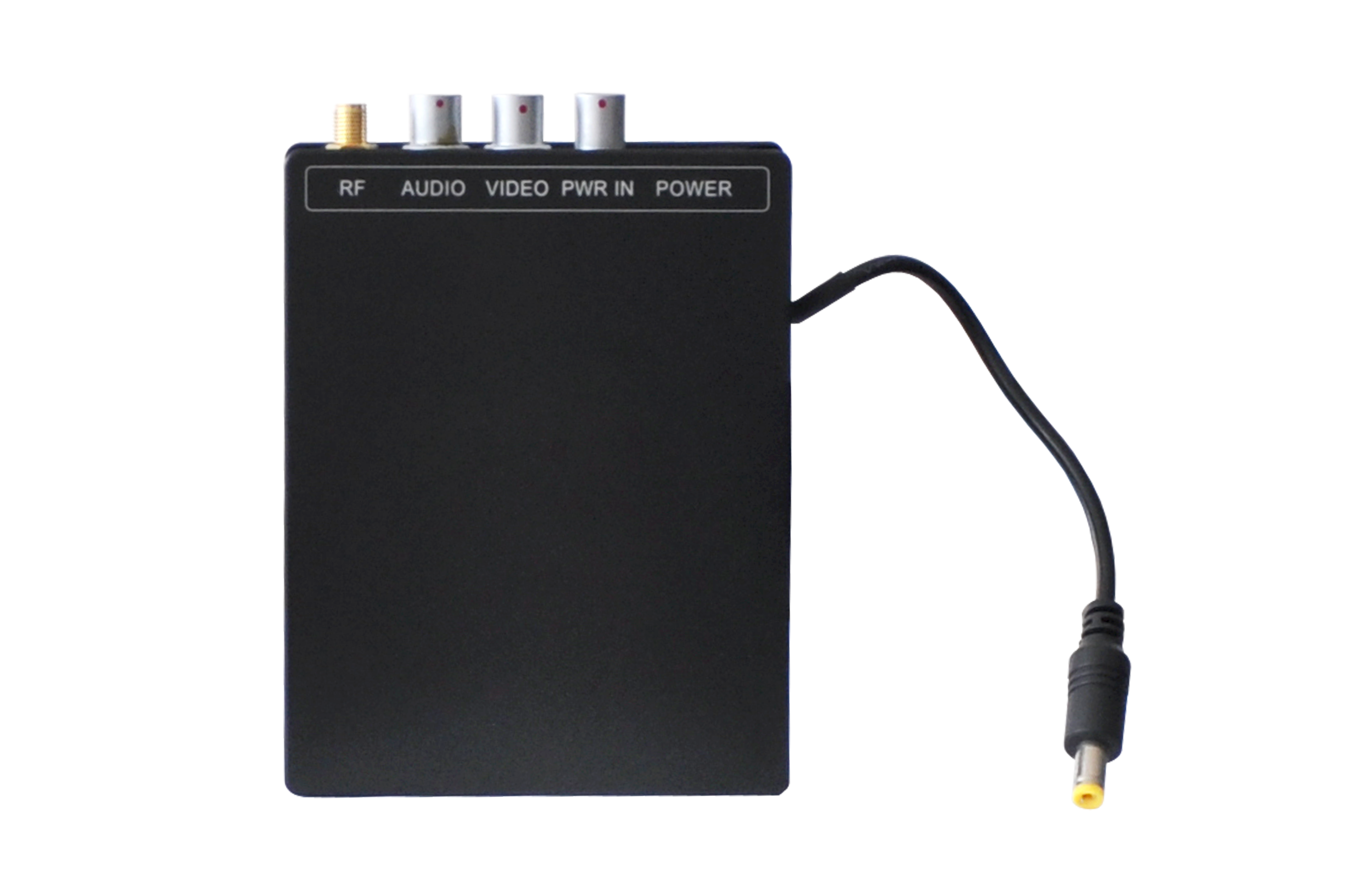

Secret shooting mobile video transmitter
MV2025TWLP/MV2025TWSP/264
TECHNICAL SPECIFICATIONS
| Power section | Operating Voltage | DC7~16.8V |
| Working current | ≤0.8A@DC12.5V | |
| RF part | Operating frequency range | 328～352MHz |
| RF bandwidth | 1.2~1.5GHz/2~2.5GHz， Or customized according to customer requirements |
|
| RF bandwidth | 1.5/2MHz，4MHz，6/7/8MHz | |
| Output Power | ≥27dBm@Attenuation=3 | |
| Carrier to noise ratio C/N | ≥28dB@30dBm | |
| Power flatness | Full frequency band≤2dB, within 8MHz≤0.5dB | |
| Second harmonic | ≥52dBc | |
| Modulation | COFDM | |
| Video encoding method | H.264 | |
| Input video format | PAL/NTSC, factory default PAL system | |
| RS232 control interface | Standard RS232 level | |
| RS232 data interface | Standard RS232 level, support 1200～115200 bps | |
| Working environment | Operating temperature | -25℃～55℃ |
| Storage temperature | -40℃～70℃ | |
| Appearance characteristics | Physical dimension | 85mm×27.3mm×115mm |
| Equipment weight | ≤480g |
EXTERNAL DIMENSION
TECHNICAL FEATURES
● It can cooperate with mini portable relay to realize long-distance transmission
● Non-line-of-sight, transmission in motion
● The equipment can be connected to a satellite system or high-definition video conference system
● With AES image transmission encryption function
● Aluminum alloy case, good impact resistance
● External digital tuner, user can adjust on-site, intuitive and easy to use
● One video and two audio (left and right channel) signals can be input simultaneously
● Optional multiple receiving equipment, flexible system construction, suitable for multiple application scenarios
● The frequency of the voice channel is adjustable, with 64 channels and 24 addresses built-in
